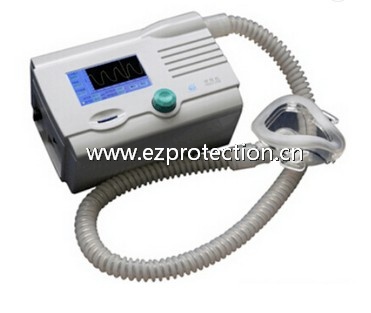

Household Noninvasive Ventilator

1.Universal Power Supply: Input Range 100-240 V, 50-60 Hz

2.Average Sound Level: Less than 30 dB(A)

3.Pressure Range: 4cm to 20cm H20 (±1 cm H20)

4.Ramp Time: 0 to 60minutes (5-min increments)

5.Modes:CPAP,

6.Screen size: 2.2"  TFT

7.Ramp Start Pressure: 4 to Min IPAP Pressure (User adjustable)

8.Altitude Compensation: Automatic

9.Comfort Technologies: Smart-Flex

10.Leak Compensation: Automatic

11.Auto Star: Yes

12.Heated Humidifier Characteristics

13.Water Capacity: 300ml at recommended water level

14.Heater Settings: 1 to 6

1.Display:4.3 LCD Display

2.Pressure Range:

    IPAP 4cm H2O to 30cm H2O

    EPAP 4cm H2O to 25cm H2O

    CPAP 4cm H2O to 20cm H2O

3.Frequency"Automatic,4~30bpm,OFF

4.Sensitivity:I~III

5.Ventilation Mode:Spontaneous(T),Time(T),CPAP,BIPAP,S+T(OPTIONAL)

6.Waveform:P-T

7.Configurations:SmartCard(Optional)

8.Data Storage:3 intervals each day records up to 6 months

9.Compensation:Automatic

10.Power Supply:100~240V AC/12V DC(with adapter)

11.Reserve Condition:Temperature:1-~40℃，relative humidity＜90%

12.Working Condition:Temperature:5~40℃,relative humidity＜80%

13.Others:automatic start-up/switch off,mask fall off alarm
